Descrição
PERFORMANCE
Processor
Intel® Core™ i5-11500 (6C / 12T, 2.7 / 4.6GHz, 12MB)
Processor Sockets
1x FCLGA1200
Integrated Graphics
Integrated Intel® UHD Graphics 750
Discrete Graphics
1x NVIDIA® T400
Chipset
Intel® B560 Chipset
Memory
1x 8GB UDIMM DDR4-3200 Non-ECC
Memory Slots
Four DDR4 UDIMM slots, dual-channel capable
Max Memory
Up to 128GB (4x 32GB UDIMMs) DDR4-3200
M.2 SSD Drive
1x 256GB SSD M.2 2280 PCIe® NVMe® Opal
SATA/SAS Drive
None
Storage Support
Up to three drives, 2x 3.5" SATA HDD + 1x M.2 SSD
• 3.5" HDD up to 4TB each
• M.2 SSD up to 1TB
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC623-CG codec
Power Supply
500W Platinum Fixed
DESIGN
Keyboard
USB Traditional Keyboard, Black, Portuguese (BR)
Mouse
USB Calliope Mouse
Expansion Slots
Two PCIe® 3.0 x1
One PCIe® 4.0 x16
M.2 Slots
Uo to 1x M.2 SSD via onboard slot
Bays
1x 3.5" disk bay (standard)
1x 3.5" disk bay (optional, comes with disk or 3.5'' HDD cage kit in flex bay)
1x 2.5" disk bay (optional by 2.5'' HDD cage kit)
Flex Bays
1x Flex bay, supports 2nd 3.5" disk bay and 9.0mm optical
Dimensions (WxDxH)
170 x 315.4 x 376 mm (6.7 x 12.4 x 14.8 inches)
Weight
9.48 kg (20.9 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet
Realtek® RTL8111K, 1x GbE RJ-45
Optional Ethernet
None
WLAN + Bluetooth
Intel® Wi-Fi® 6 AX201, 11ax 2x2 + BT5.1, vPro®
Card Reader
None

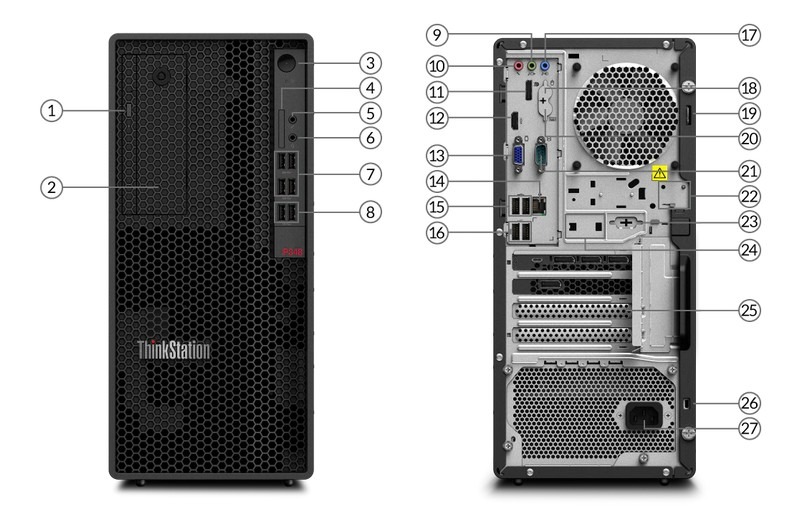

Front Ports
2x USB 3.2 Gen 2
1x microphone (3.5mm)
1x headphone (3.5mm)
4x USB 3.2 Gen 1
Optional Front Ports (configured)
None
Rear Ports
1x HDMI®
1x VGA
1x line-out (3.5mm)
1x line-in (3.5mm)
1x microphone (3.5mm)
1x serial (9-pin)
4x USB 2.0 (one supports Smart Power On)
1x Ethernet (RJ-45)
1x DisplayPort™
Optional Rear Ports (configured)
None
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 integrated in processor
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Padlock Loop
Smart Cable Clip
E-lock
Cable lock
Cable Lock
None
Chassis Intrusion Switch
Chassis Intrusion Switch
MANAGEABILITY
Diagnostic
Lenovo® UEFI Bootable Diagnostics
SERVICE
Base Warranty
1-year, Onsite
Included Upgrade
None
CERTIFICATIONS
Green Certifications
EPEAT™ Silver
TCO Certified 8.0
ENERGY STAR® 8.0
RoHS compliant
ErP Lot 3
ISV Certifications
Please visit www.thinkworkstations.com/isv-certifications/
SOFTWARE
Operating System
Windows® 10 Pro 64, Portuguese (Brazil)
Bundled Software
NonePERFORMANCE
Processor
Intel Core™ i5-11500 (6C / 12T, 2.7 / 4.6GHz, 12MB)
Processor Sockets
1x FCLGA1200
Integrated Graphics
Integrated Intel UHD Graphics 750
Discrete Graphics
1x NVIDIA T400
Chipset
Intel B560 Chipset
Memory
1x 8GB UDIMM DDR4-3200 Non-ECC
Memory Slots
Four DDR4 UDIMM slots, dual-channel capable
Max Memory
Up to 128GB (4x 32GB UDIMMs) DDR4-3200
M.2 SSD Drive
1x 256GB SSD M.2 2280 PCIe NVMe Opal
SATA/SAS Drive
None
Storage Support
Up to three drives, 2x 3.5 SATA HDD + 1x M.2 SSD
• 3.5 HDD up to 4TB each
• M.2 SSD up to 1TB
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC623-CG codec
Power Supply
500W Platinum Fixed
DESIGN
Keyboard
USB Traditional Keyboard, Black, Portuguese (BR)
Mouse
USB Calliope Mouse
Expansion Slots
Two PCIe 3.0 x1
One PCIe 4.0 x16
M.2 Slots
Uo to 1x M.2 SSD via onboard slot
Bays
1x 3.5 disk bay (standard)
1x 3.5 disk bay (optional, comes with disk or 3.5'' HDD cage kit in flex bay)
1x 2.5 disk bay (optional by 2.5'' HDD cage kit)
Flex Bays
1x Flex bay, supports 2nd 3.5 disk bay and 9.0mm optical
Dimensions (WxDxH)
170 x 315.4 x 376 mm (6.7 x 12.4 x 14.8 inches)
Weight
9.48 kg (20.9 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet
Realtek RTL8111K, 1x GbE RJ-45
Optional Ethernet
None
WLAN + Bluetooth
Intel Wi-Fi 6 AX201, 11ax 2x2 + BT5.1, vPro
Card Reader
None
Front Ports
2x USB 3.2 Gen 2
1x microphone (3.5mm)
1x headphone (3.5mm)
4x USB 3.2 Gen 1
Optional Front Ports (configured)
None
Rear Ports
1x HDMI
1x VGA
1x line-out (3.5mm)
1x line-in (3.5mm)
1x microphone (3.5mm)
1x serial (9-pin)
4x USB 2.0 (on
Especificações Técnicas
Conheça o produto
Este produto ainda não tem descrição cadastrada.
