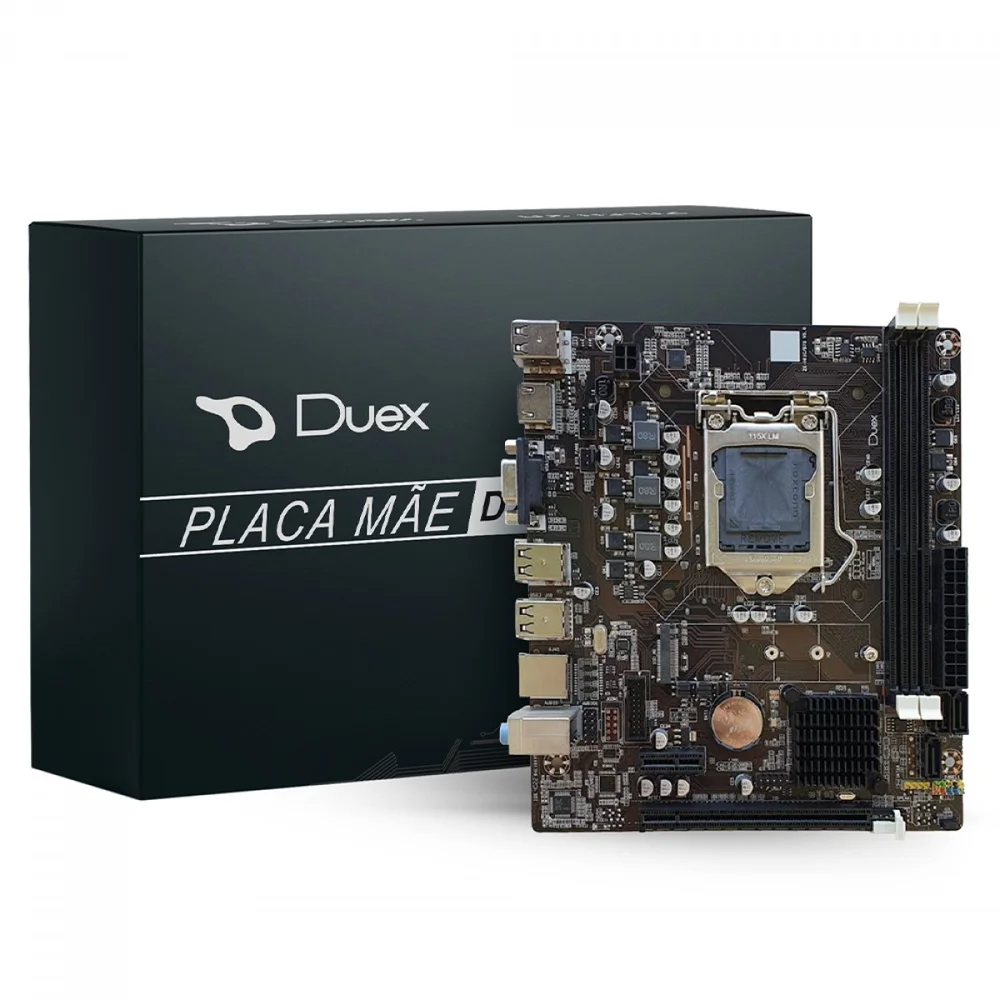

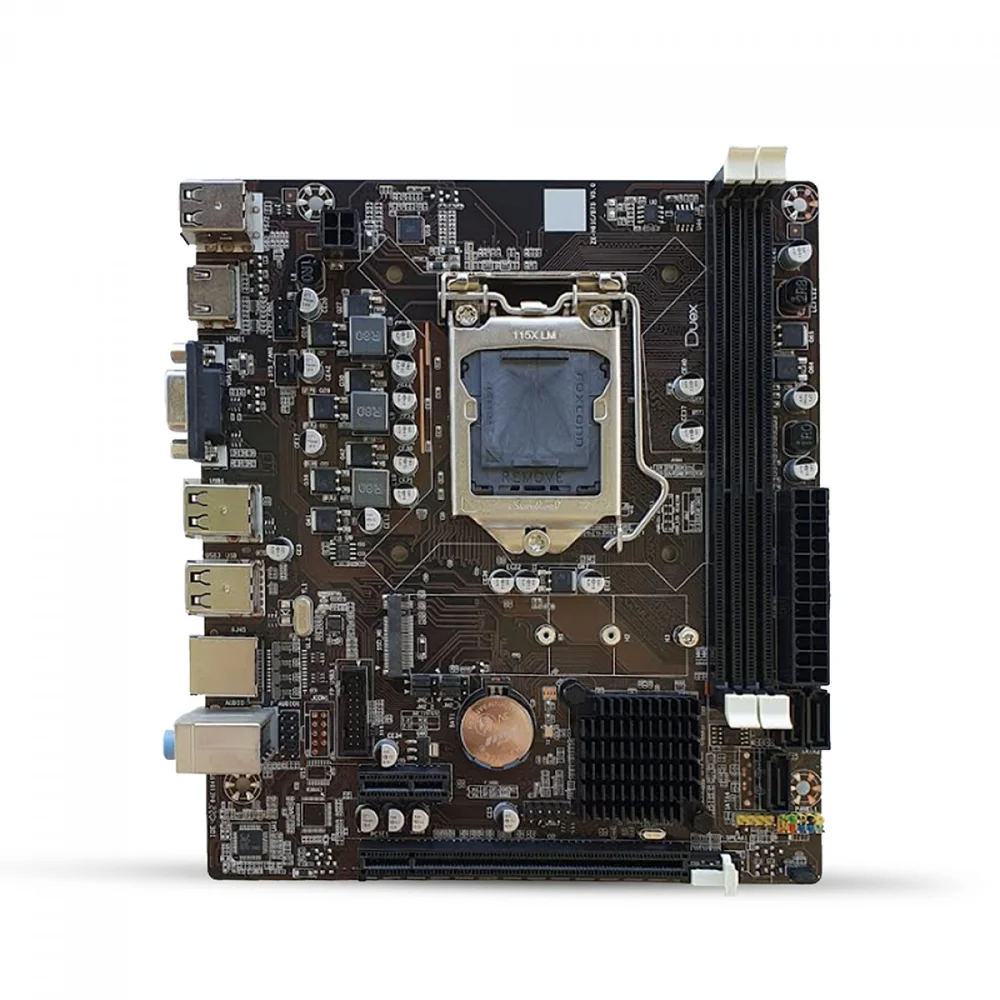

PLACA MAE H61 LGA 1155 MATX, DUEX H61ZG M.2, DDR3, HDMI/VGA, LAN GIGABIT

Marca:
Duex

Modelo:
DX-H61ZG M2

CPU:
Supports Intel Socket 1155 Core i7/ i5/ i3 processors

Chipset:
Intel H61

Suporte de memória:
Support Dual channel DDR3 1333/1066 SDRAM (8GB Max)
2 x DDR3 DIMMs (240 pin/ 1.5V)

LAN:
Spport Realtek 10/100/1000 Mbps

Áudio:
Chip integrated by Realtek® ALC662

Slot:
1 x PCI Express x16 Slot
1 x PCI Express x1 Slot

Armazenamento:
4 x SATA port

Conectores Internos:
1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
2 x USB connector support additional 4 USB ports
1 x LPC_DEBUG connector
1 x Front panel audio connector
1 x System Panel connector
1 x M.2

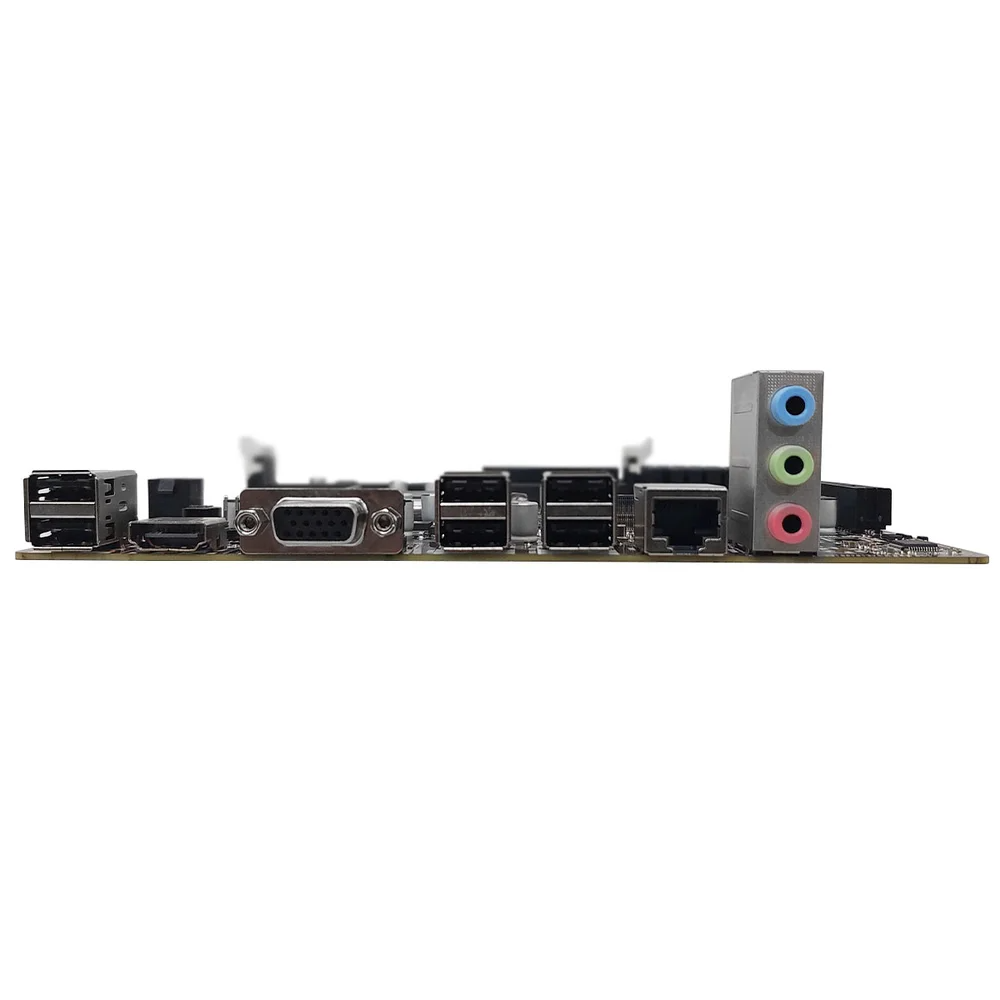

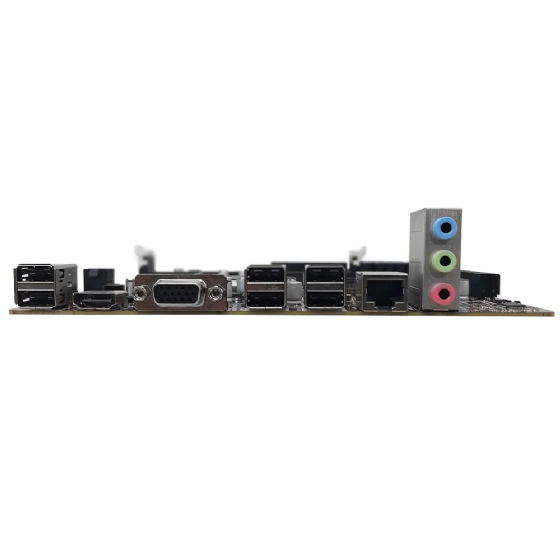

Painel traseiro:
1 x USB keyboard
1 x USB mouse
1 x VGA
1 x HDMI
4 x USB 2.0 (2 x USB 2.0,2 1 x LAN(RJ45) Port
3 x Audio jack

BIOS:
EFI BIOS

Acessórios:
1 x CD do driver
1 x Manual do usuário
1 x Placa de E/S
1 x Cabo SATA

Formato:
Micro ATX, 190 x 170 mm
